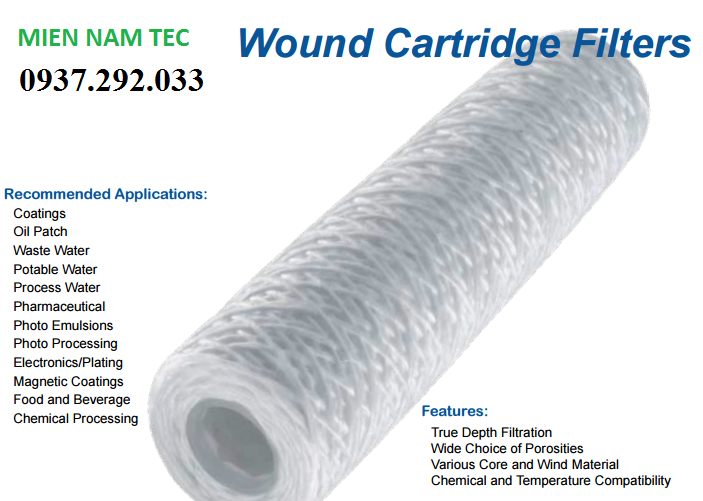

Wound Cartridge Filters

Wound Cartridge Filters

Length: 10inch, 20inch, 30inch, 40inch

Standard Polypropylene

Recommended for concentrated acids and alkalies, strong oxidiz-ing agents, corrosive fluids, and gases. FDA and Non-FDA available -- Consult factory. Easily incinerated to traces of ash. Excellent micro-organism resistance. For use to 200˚F.

Chemical resistance similar to polypropylene, with higher temperature resistance. For use to 350˚F

•     vegetable Oils - Fatty Acid
•      Beverages - Citric Acids
• Hydrocarbons - Alcohols
• Demineralized Water
• Photographic Solutions
• Organic Solvents
• Animal, Petroleum and Vegetable Oils

​Bleached Cotton

Bleached to meet FDA standards for distilled water, beverages, veg-etable oils, petroleum, fatty acids, and alcohols. For use to 300˚F. Poor micro-organism resistance

Core Selection Guide

Media Type   Description

Polypropylene   Economical core of choice for most applications in water and corrosives to 200º F. FDA material\

304 SS For high temperature applications on diluted acids and moderately corrosive fluids. FDA applications. For use to 750º F. These cores are vapor helically-welded to eliminate a possible source of filtrate contamination and vapor-degreased to remove trace amounts of oil or residue prior to winding.

316SS   For high temperature applications on strong acids and highly corrosive fluids. FDA applications. For use to 750º F. These cores are vapor helically-welded to eliminate a possible source of filtrate contamination and vapor-degreased to remove trace amounts of oil or residue prior to winding.

Core Cover For fiber migration control. Core material compatible with and/or equal to the resistance of the fiber is standard. Materials include voile, polypropylene, nylon, polyester, fiberglass, etc.

End Treatment For additional fiber migration protection. End treatment is compatible with and/or equal to the resistance of the fiber medium.

Extended Core Available in polypropylene and 316SS only. Extended cores eliminate chamber V-posts and increase cartridge change-out time.
